Mapping soil organic carbon stocks of different land use types in the Southern Moscow region by applying machine learning to legacy data

Cover Page

Cite item

Full Text

Abstract

This study presents the result of topsoil (0—10 cm) soil organic carbon (SOC) mapping in two areas of Moscow Region (2007 status): 1096 km2 — Podolsky District, and 1101 km2 — Serpukhovsky District. Based on 2007 legacy soil sampling data (n = 282) within these areas, we have created a statistical model between the target variable (SOC stocks, kg/m2) and numerous covariates (legacy maps and remote sensing data). GBM model has explained 56% of soil organic carbon stocks variability. Differences in stocks within different land use types were shown quantitatively. At the same time, the spectral reflectance in the near infrared band (B5) of Landsat‑5 TM made the greatest contribution in explaining the differences within individual types (among fallow lands and urbanized areas), and the spectral index NDVI has explained the spatial variability of soil organic carbon among forest ecosystems. The root mean square error of cross-­validation (RMSEcv = 0.67 kg/m2) was chosen to describe the uncertainty of soil organic carbon stock prediction. According to the model, the total soil organic carbon stocks in the upper 10 cm soil layer of the Podolsky District were 2.65 ± 0.72 Tg, for the Serpukhovsky District — 2.77 ± 0.73 Tg.

Full Text

Table 1
List of covariates used to predict SOC in the 0—10 cm of soils

 SCOPRAN

 Predictor (code)

 Source

 Link

 R

 elevation (elev)

 DEM SRTM 30m



 R

 slope (slope)

 —



 R

 aspect (aspect)

 —



 R, N

 Topographic Wetness Index (twi)

 —

 [38]

 R

 flow direction (flowdir)

 —

 [39]

 R

 flow accumulation (flowacc)

 —

 [39]

 P, A, N

 B1_BLUE (b1)

 Landsat‑5 TM (median)



 P, A, N

 B2_GREEN (b2)

 —



 P, A, N

 B3_RED (b3)

 —



 P, A, N

 B4_NIR1 (b4)

 —



 P, A, N

 B5_NIR2 (b5)

 —



 P, A, N

 B7_SWIR (b7)

 —



 P, A, N

 B3/B2 (b2b3_ratio)

 —

 [40]

 P, A, N

 B5/B4 (b5b4_ratio)

 —

 [40]

 O

 NDVI (ndvi)

 —

 [41]

 O

 SAVI (savi)

 —



 C

 MNDWI (mndwi)

 —

 [42]

 P, N

 NDBI (ndbi)

 —

 [43]

 O, A, S

 land use map (landcover)

 —



 S

 soil type (soils)

 Soil map of the Moscow region

 [32]

 P, S

 grain-size composition (gms)

 Soil map of the Moscow region

 [32]

Note. R — relief; N — space; A — age; P — parent material; O — organisms; C — climate; S — soil.
Source: compiled by Yu.A. Dvornikov.

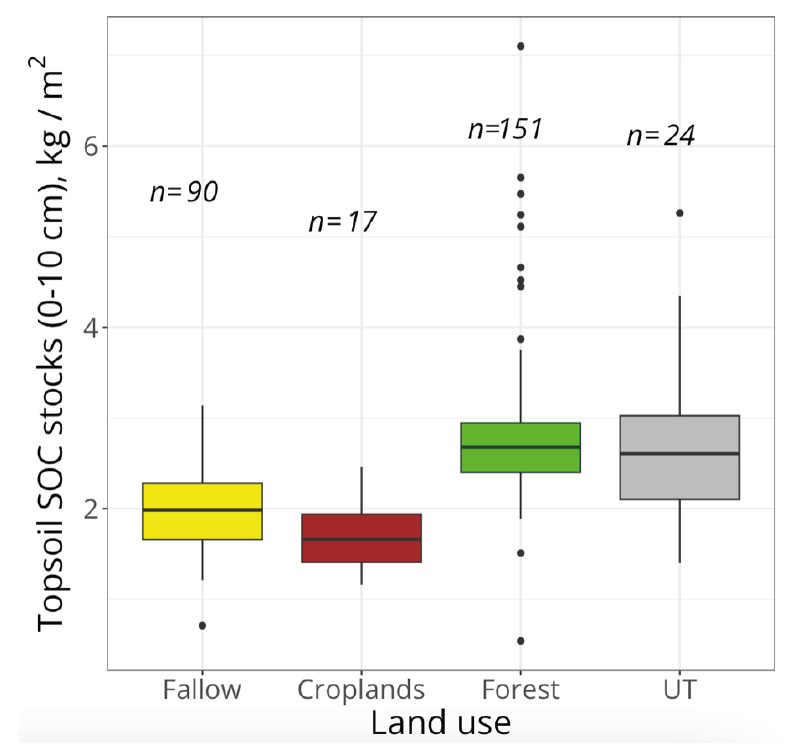

Fig. 1. Distribution of topsoil SOC stocks of different land use types according to legacy soil survey data: UT — urbanized territories
Source: compiled by Yu.A. Dvornikov.

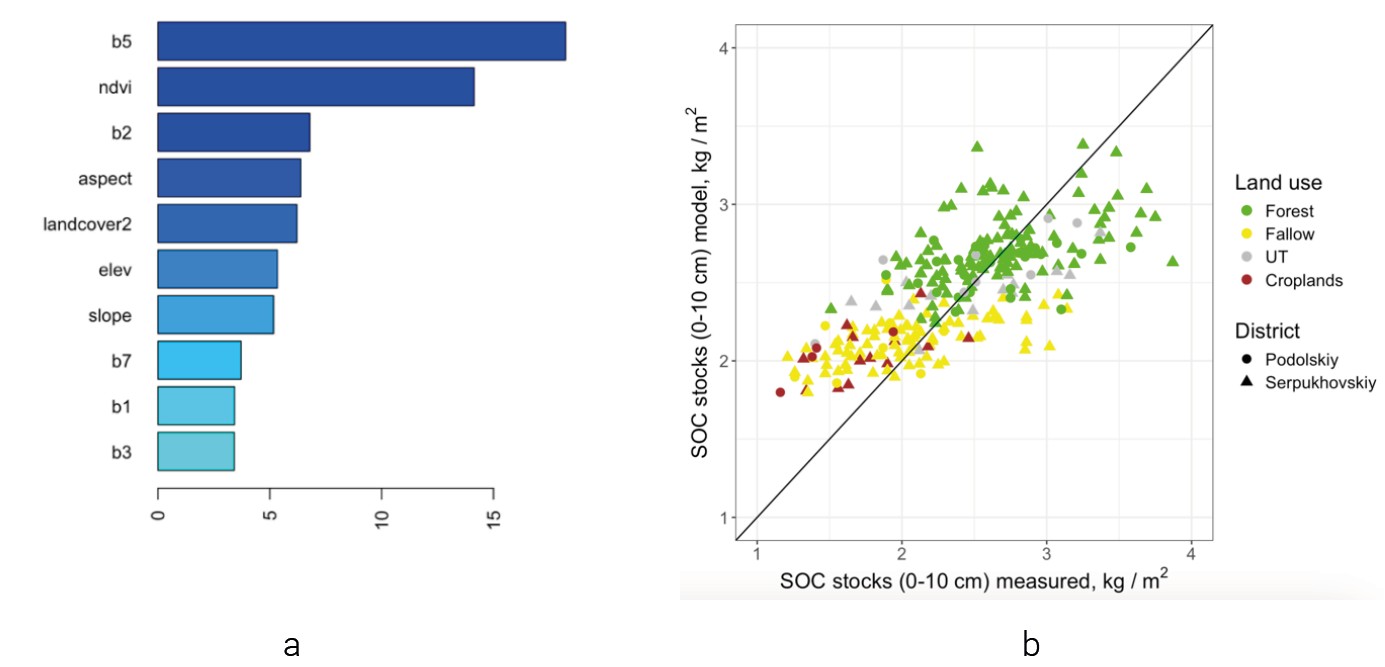

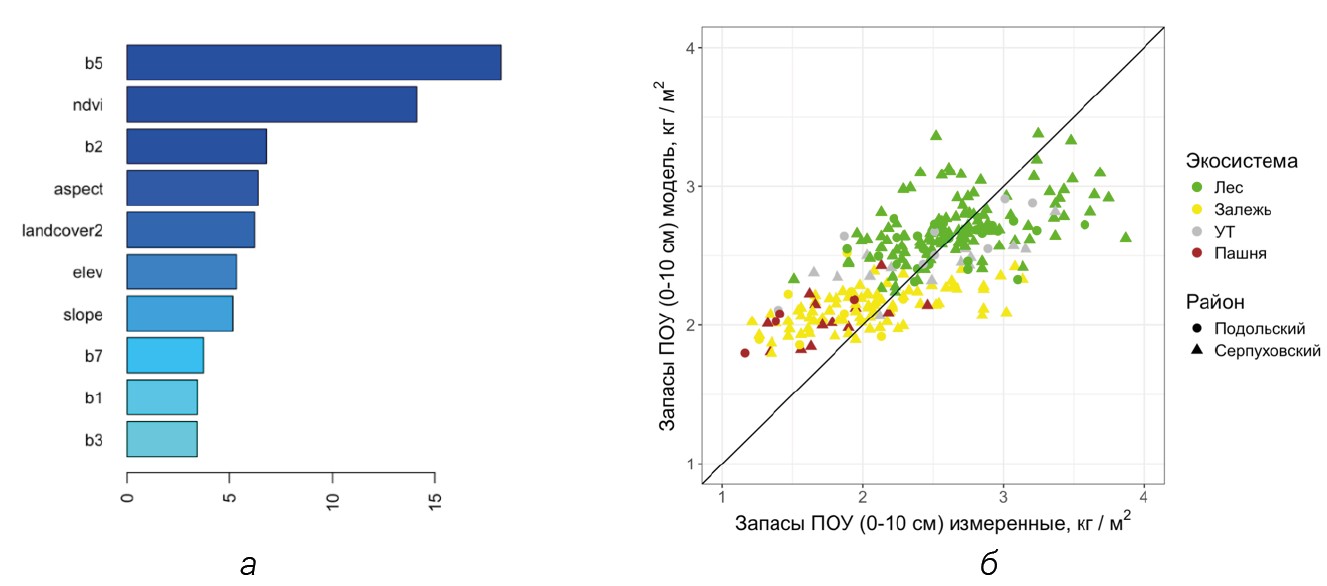

Fig. 2. Relative importance of predictors, %, explaining the variability of SOC in the upper 10cm layer (a), and comparison of measured and predicted SOC stocks values (0—10 cm) in two districts of the Moscow region (b). UT — urbanized territories
Source: compiled by Yu.A. Dvornikov.

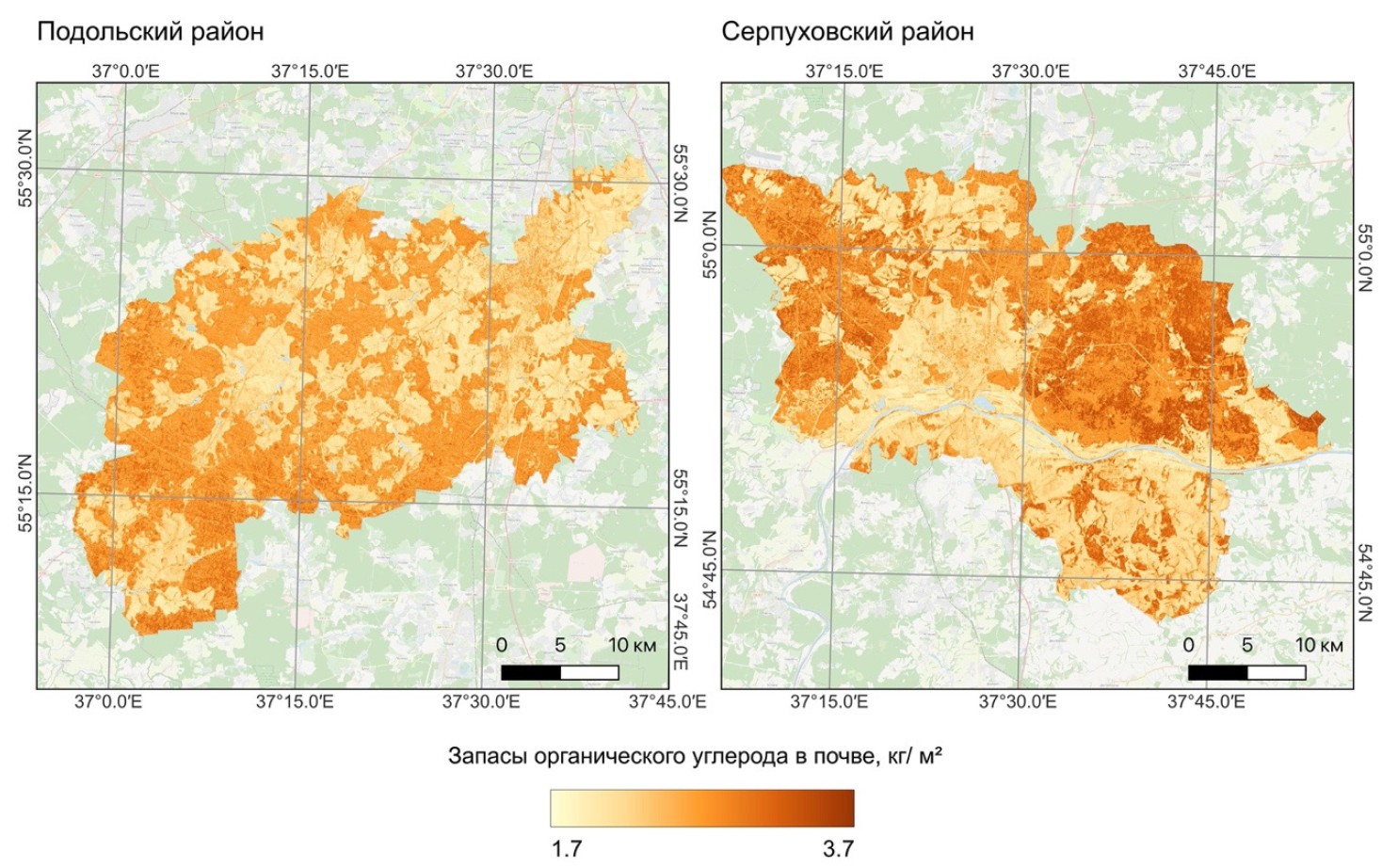

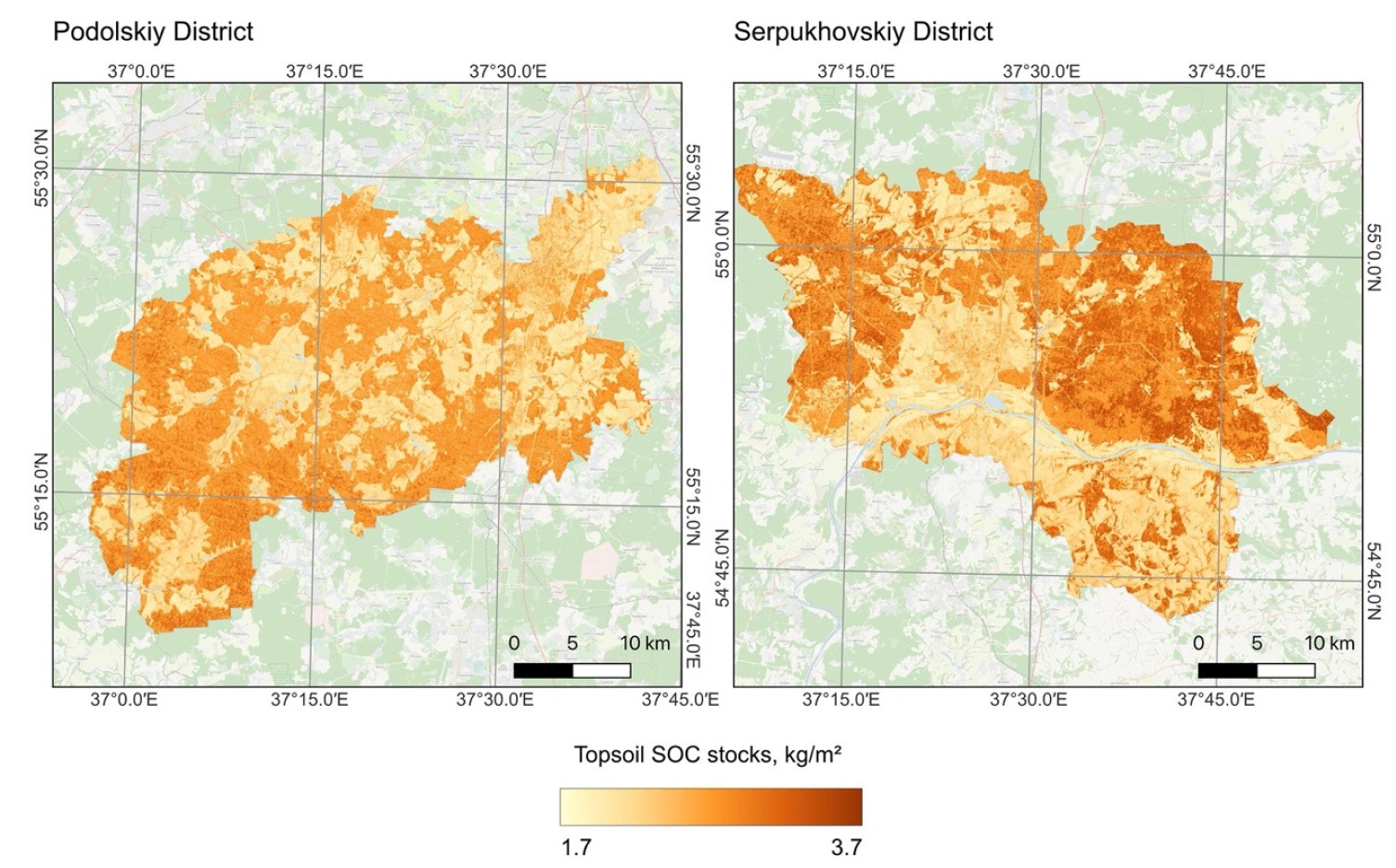

Fig. 3. Spatial distribution of SOC stocks in the topsoil (0—10 cm) for Podolskiy and Serpukhovskiy districts of Moscow region (predicted values as of 2007)
Source: compiled by Yu.A. Dvornikov.

Table 2
Total SOC stocks in the upper 10 cm soil layer of Podolskiy and Serpukhovskiy administrative districts (as of 2007) for four main land use types

 District

 Land use

 Predicted SOC stocks, Tg

 Limit of uncertainty, Tg

 Lower

 Upper

 Podolskiy

 Forest ecosystems

 1.48

 1.11

 1.84

 Fallow lands

 0.62

 0.43

 0.81

Urbanized territories

 0.09

 0.07

 0.12

 Croplands

 0.46

 0.32

 0.6

 Serpukhovskiy

 Forest ecosystems

 1.68

 1.29

 2.07

 Fallow lands

 0.84

 0.58

 1.1

Urbanized territories

 0.05

 0.04

 0.07

 Croplands

 0.2

 0.13

 0.26

Source: compiled by Yu.A. Dvornikov.

×
