Development of new immunoanalytical test systems for diagnostics of potato blackleg caused by Dickeya spp. bacteria

Cover Page

Abstract


Potato blackleg caused by Dickeya spp. bacteria is one of the most important bacterial diseases of potatoes. The rapid spread of this disease in the territory of Russia requires new effective diagnostic tools for the timely detection of infection. To solve this problem, antisera specific to Dickeya spp. were obtained. Polyclonal antibodies isolated from antisera have shown high affinity for the main species of Dickeya spp. ( D. solani, D. dianthicola, D. chrysanthemi, D. dadantii, D. paradisiaca ). Enzyme linked immunosorbent assay (ELISA) and lateral flow immunoassay (LFIA) test systems have been developed based on specific and high affinity antibodies that were obtained. For ELISA, the detection limit was 0.8 × 105 cells/mL for D. solani and 2 × 104 cells/mL for D. dianthicola . For LFIA, suitable for use in non-laboratory conditions, the detection limit of D. solani was 2 × 105 cells/mL and the analysis time was 15 minutes. When testing potato seed material, LFIA test system confirmed positive results of ELISA determination in 75 % of samples, and negative - in 100 % of samples.


Full Text

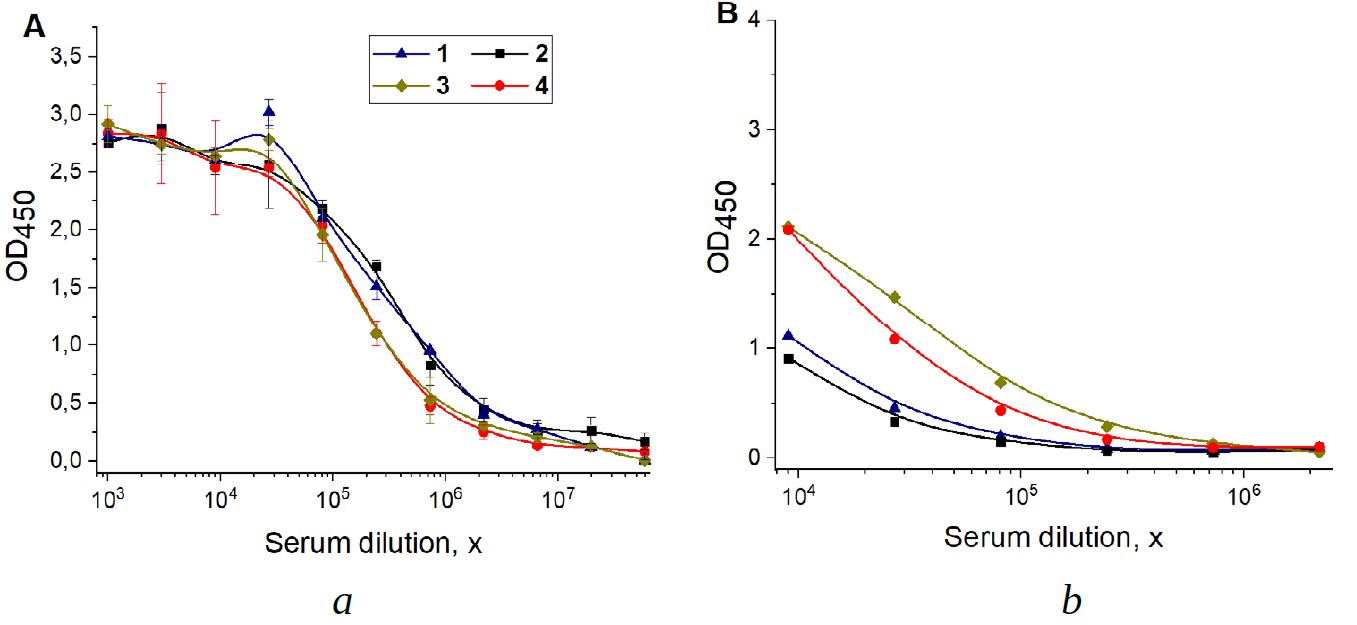

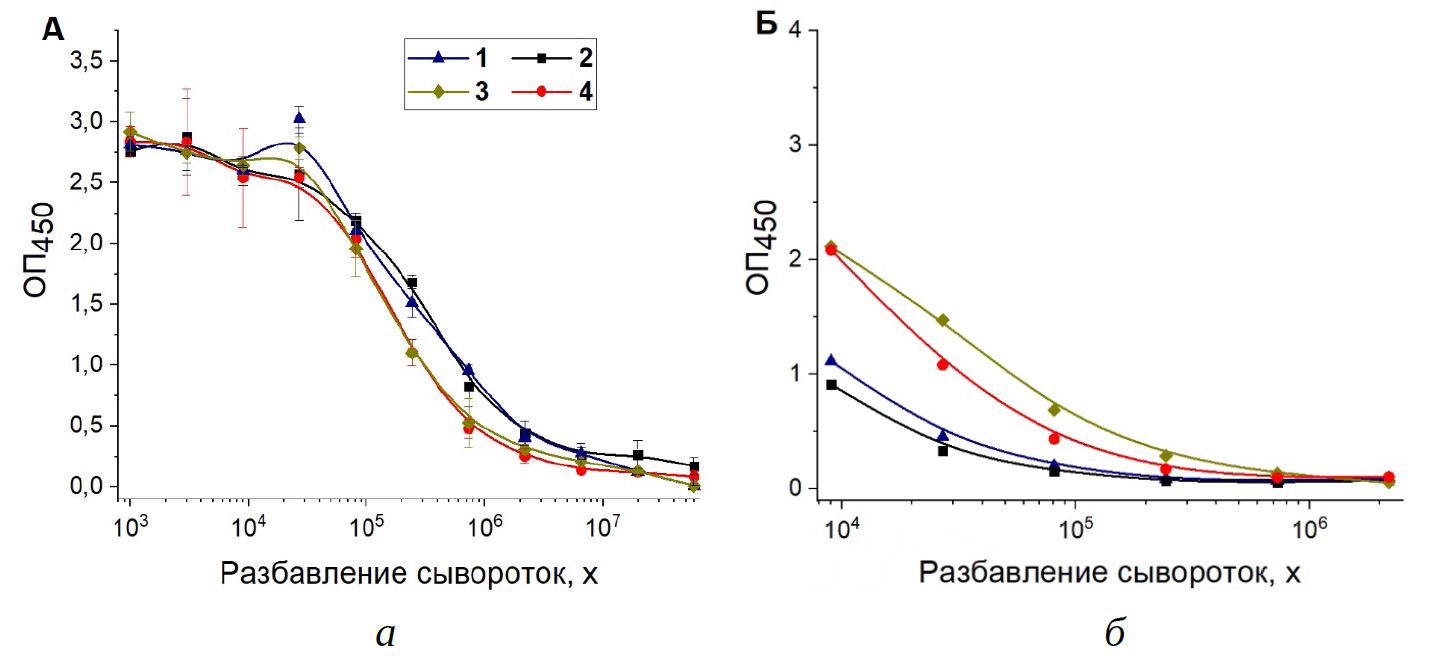

Fig. 1. Comparison of antisera specific to D. solani through ELISA, with absorption of D. solani bacteria (a) and P. atrosepticum (b) on a microplate: 1–4 — numbers of serum

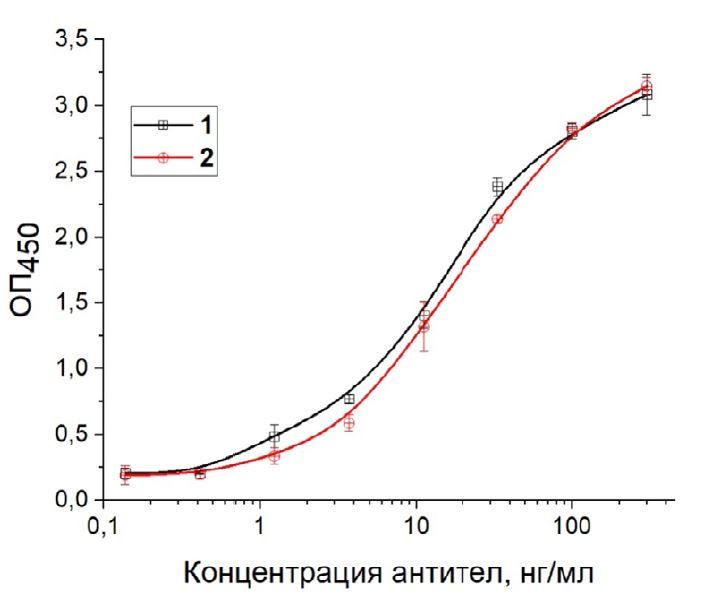

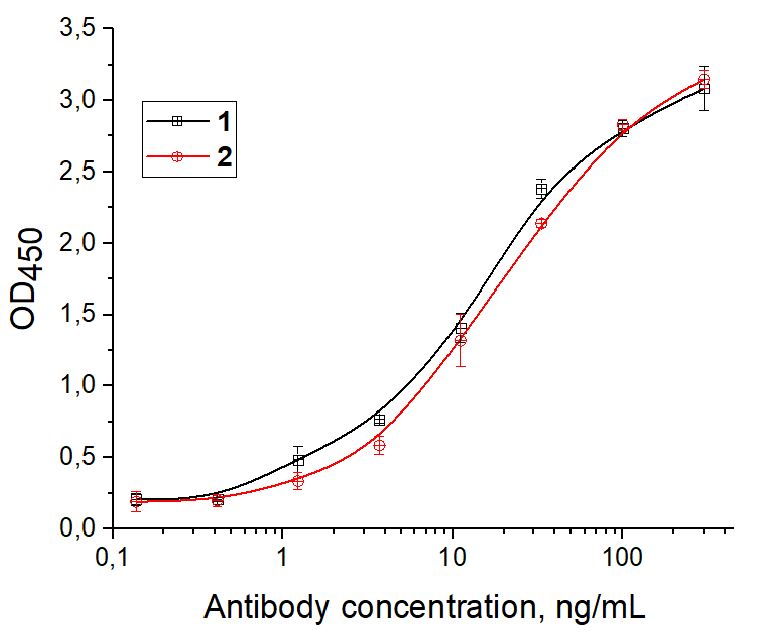

Fig. 2. Concentration dependences of antibodies specific to D. solani cells through ELISA, absorbed in a microplate at a concentration of 1×108 cells/mL: 1, 2 — numbers of serum, from which antibodies were purified

Table 1. Results of testing pure cultures of bacteria (1 × 107 cells/mL) through ELISA and LFIA test systems

Collection number of Russian Plant Quarantine Center

Bacterium

Test system

ELISA

LFIA

OD450

Result

Result

1

0039

Ralstonia solanacearum, раса 3, bv.2

0

2

0040

Ralstonia solanacearum, раса 3, bv.2

0

3

0141

 Pectobacterium carotovorum subsp. carotovorum

0

4

0142

Pectobacterium atrosepticum

0

5

0143

Pectobacterium atrosepticum

0

6

0144

Diсkeya dianthicola

2.41

+

+

7

0235

Clavibacter michiganensis subsp. Sepedonicus

0

8

0239

Сlavibacter michiganensis subsp. michiganensis

0

9

0240

Сlavibacter michiganensis subsp. michiganensis

0

10

0222

Pseudomonas syringae pv. syringae

0

11

0223

Pseudomonas syringae pv. syringae

0

12

0327

Pectobacterium carotovorum subsp. odoriferum

0

13

0328

Pectobacterium wasabiae

0

14

0329

Pectobacterium betavasculorum

0

15

0330

Pectobacterium cacticida

0

16

0331

Dickeya chrysanthemi

2.46

+

+

17

0332

Dickeya dadantii subsp. Dadantii

1.89

+

+

18

0333

Dickeya paradisiaca

2.16

+

19

0334

Dickeya zeae

0.28

+

+

20

0335

Pseudomonas fuscovaginae

0

21

0336

Dickeya dadantii subsp. dieffenbachiae

2.19

+

+

22

0353

Dickeya solani

1.98

+

+

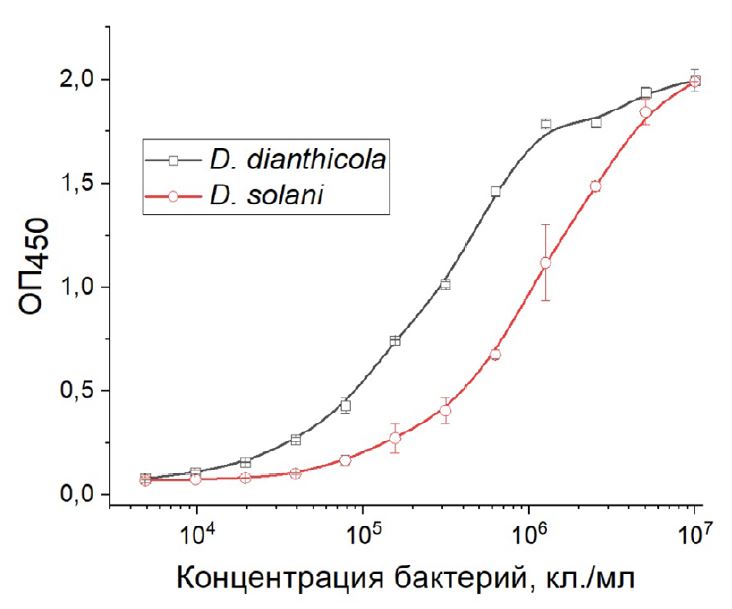

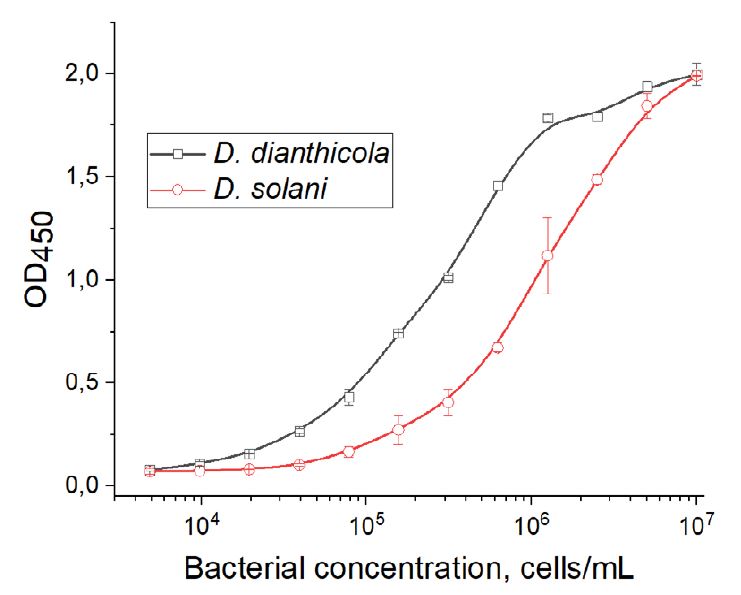

Fig 3. Concentration dependences obtained through ELISA from samples with different bacterial concentration of D. solani and D. dianthicola

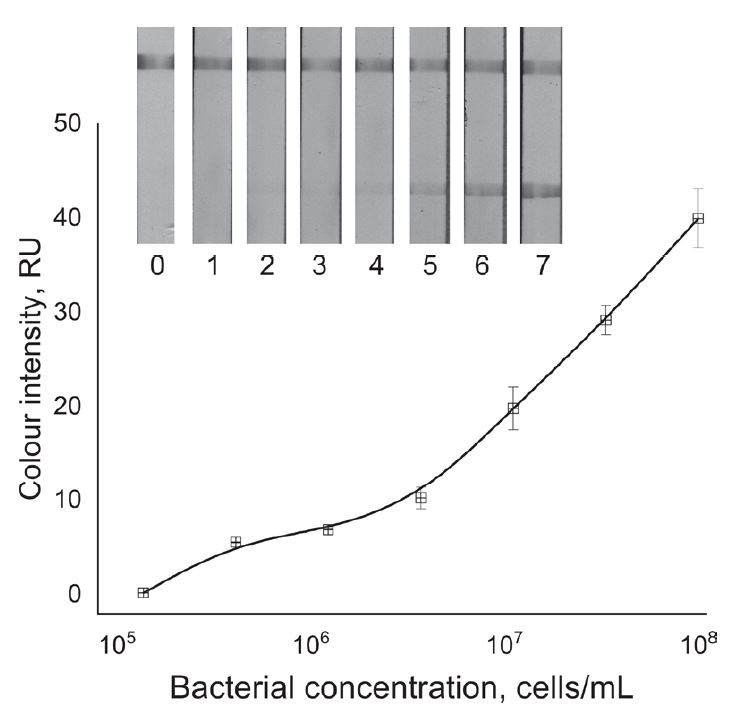

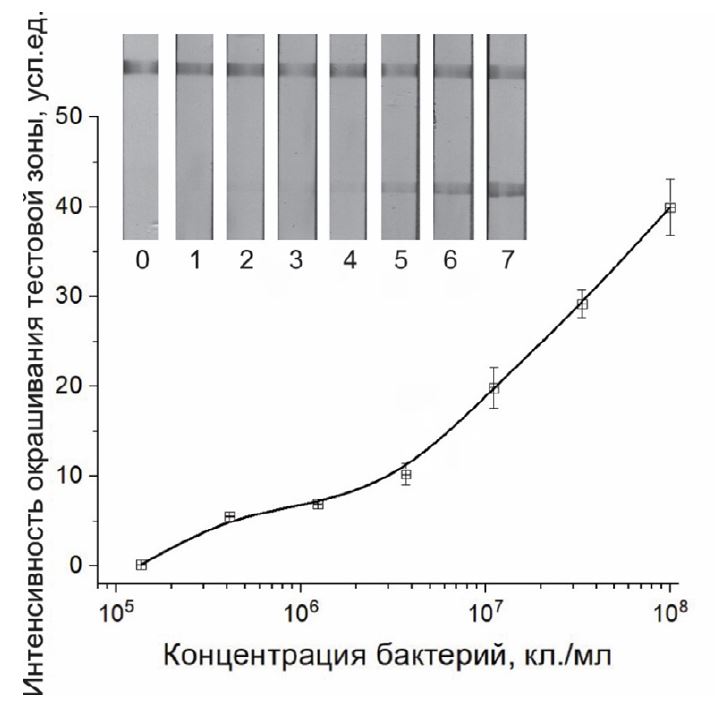

Fig. 4. Test strips after analysis of samples with different concentrations of D. solani: 0 — negative control; 1–1.4×105; 2–4.1×105; 3–1.2×106; 4–3.7×106; 5–1.1×107; 6–3.3×107; 7–1×108 cells/mL and the corresponding dependence of the color intensity of the test zones on the concentration of D. solani

Table 2. Results of ELISA and LFIA testing of Dickeya spp. infection in potato tubers

Sample*



ELISA

LFIA

Cultivar, reproduction

OD450

Result

Result

1

Ledi Kler, 3 repr.

0.062

­-

­-

2

Opal, 3 repr.

0.088

­-

­-

3

Opal, 3 repr.

0.113

­-

­-

4

Korolek, 2 repr.

0.073

­-

­-

5

Ledi Kler, elite

1.289

+

+

6

Ledi Kler, 1 repr.

0.057

­-

­-

7

Ostin, 1 repr.

2.358

+

+

8

Korolek, 2 repr.

0.117

­-

­-

9

Nort, elite

0.073

­-

­-

10

Bars, elite

2.111

+

+

11

Opal, 3 repr.

2.635

+

+

12

Korolek, 2 repr.

0.155

­-

­-

13

Impala, SSE

2.308

+

+

14

Rivyera, SSE

0.095

­-

­-

15

Kollete, SSE

0.119

­-

­-

16

Udacha, FFR

0.120

­-

­-

17

Kollete, FFR

2.493

+

+

18

Dezire, FFR

0.427

+

­-

19

Fioletovy, FFR

0.656

+

­-

20

Fioletovy, SSE

0.303

+

­-

21

Arrou, SSE

0.070

­-

­-

22

Udacha, SSE

0.276

+

­-

23

Red Skarlet, FFR

1.477

+

+

24

Impala, FFR

2.476

+

+

25

Red Skarlet, SSE

0.092

­-

­-

26

Dezire, SSE

0.730

+

­-

27

Rivyera, FFR

0.116

­-

­-

28

Grand, FFR

0.439

+

+

29

Varyag, FFR

0.991

+

­-

30

Kumach, FFR

2.395

+

+

31

Gulliver, FFR

0.092

­-

­-

32

Meteor, FFR

1.800

+

+

33

Red Ledi, elite

1.977

+

+

34

Koroleva Anna, elite

0.170

­-

­-

35

Red Skarlet, A

0.110

­-

­-

36

Sante, elite

0.092

­-

­-

37

Gala, 3 repr.

2.818

+

+

38

VR­808, 2 repr.

2.281

+

+

39

Bruk, 1 repr.

2.120

+

+

40

Ledi Kler, 2 repr.

2.386

+

+

41

Ledi Kler, 2 repr

0.789

+

+

42

Gala, 2 repr.

1.177

+

+

43

Nakra, mini­tubers

0.064

­-

­-

*Samples received: 1–12 — from Kyrgyzstan; 13–32, 37–42 — from the Moscow region; 33–36 — from the Oryol region; 43 — from the Bryansk region.
